type:
THJ 1000, THJ 2000, THJ 3000, THJ 5000
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable

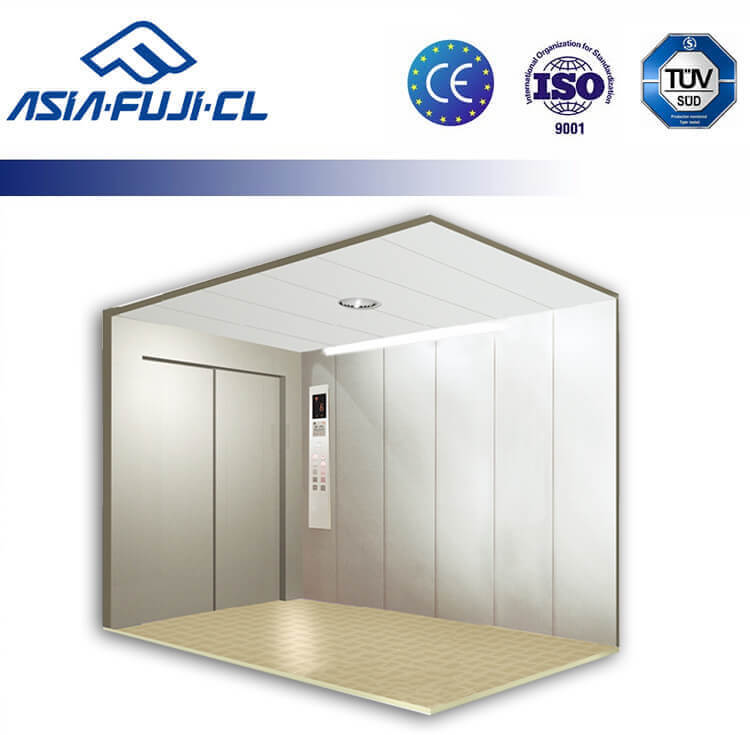

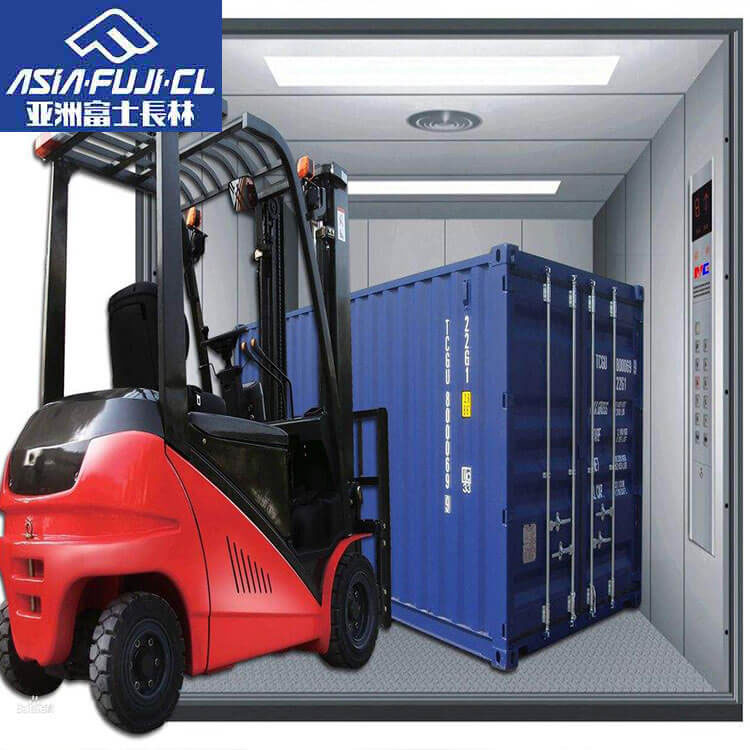

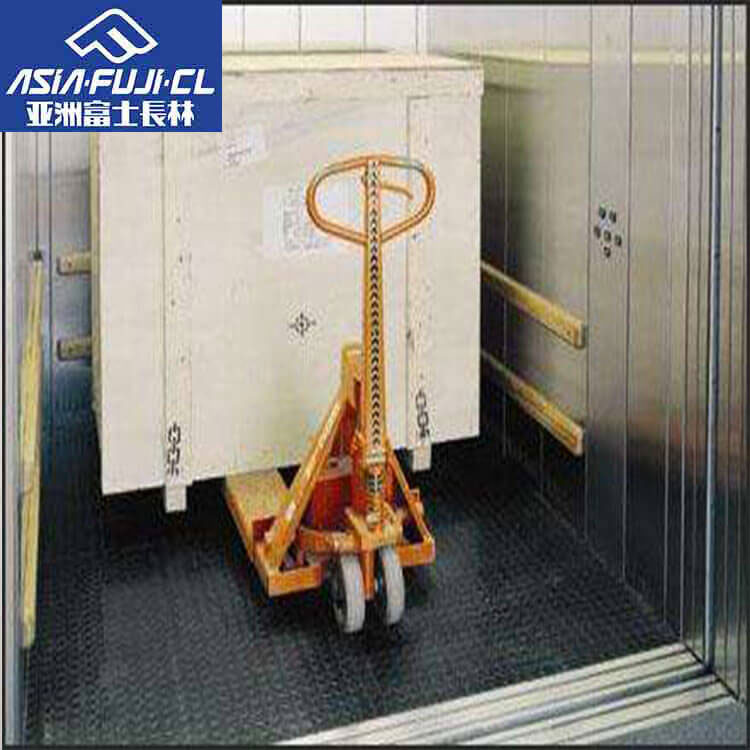

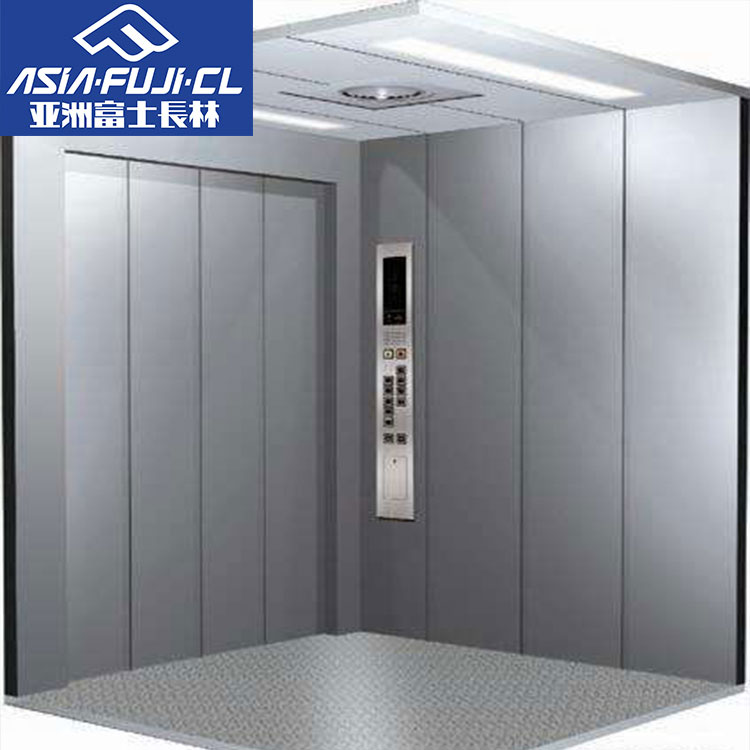

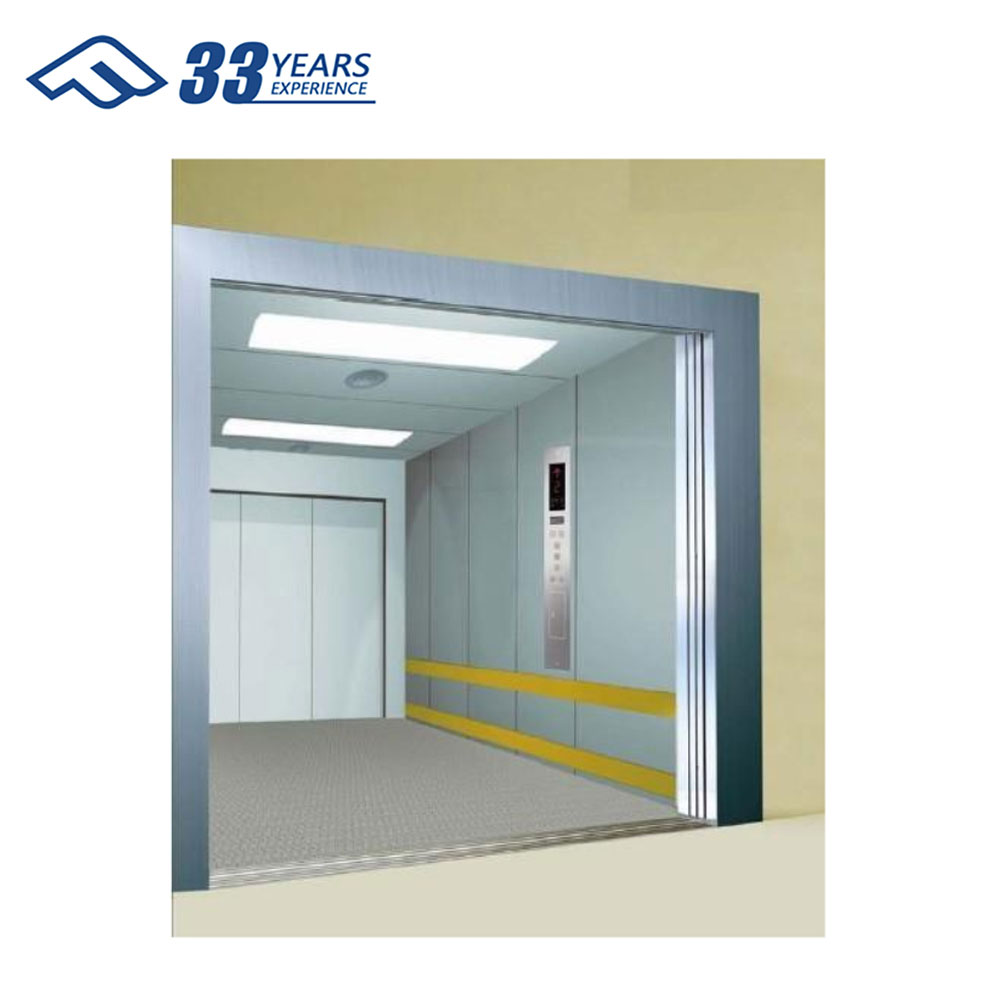

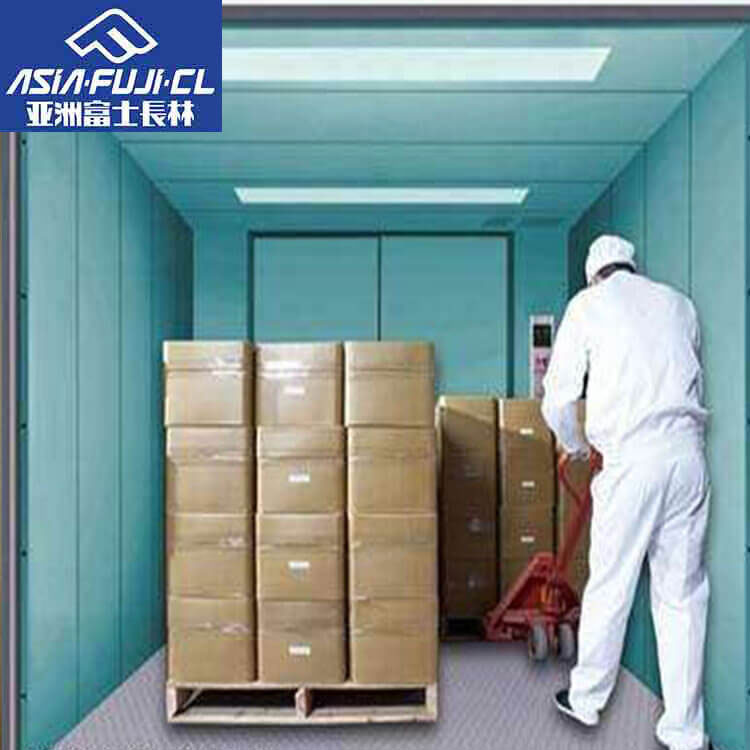

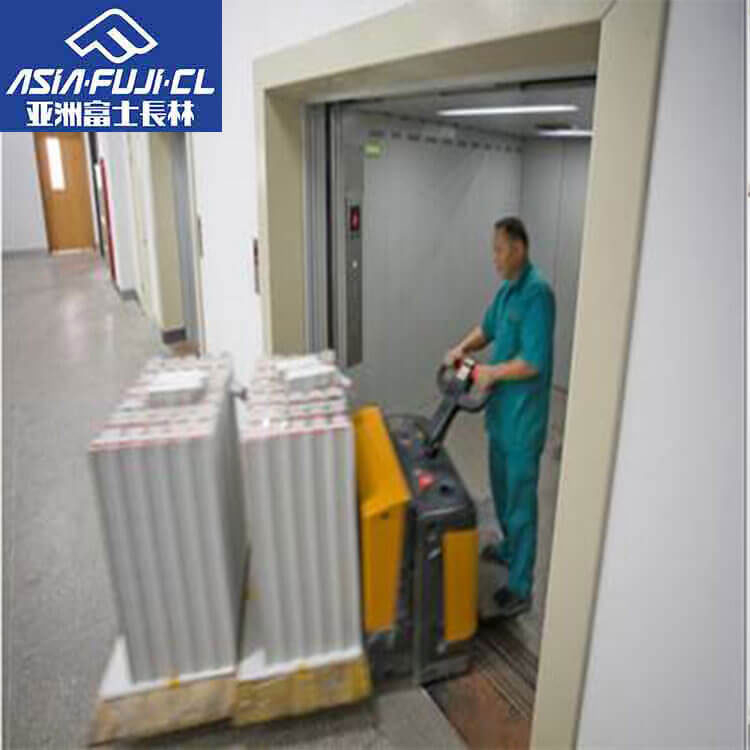

Asia Fuji Changlin serial freight elevators apply micro-computer control technology. It use high intensity cars that have been designed and manufactured by section materials. It can transport the freight under various adverse conditions. Asia Fuji Changlin freight elevator carries out the current national standards such as GB7588 “The Elevator Manufac-ture, Installation Safety Standarards” etc. Asia Fuji Changlin freight elevator is your ideal chioce for shipping goods in the factory, warehouse, department store, shopping center, housing property management center etc. because of its safe; durable and reliable properties, high structural strength, smooth operation, large door opening distance, high cost performance.
Part |
Remark |
||
Decoration |
Car top/ car platform | Paint steel | |
Ceiling | Paint steel | ||
Cabin wall | front | Paint steel | |
rear | Paint steel | ||
side | Paint steel | ||
Handrail | No (optional) | ||
Floor (16DP004) | Riffled plate | ||
COP |
COP | Integrated type | Tinanium mirror stainless steel |
LCD screen | Dot matrix display | ||
Button | round braille button | ||
Floor number | 2 | ||
Picture Size for reference |
Capacity | 2000kg | |
Door size | (W)1500mm *(D)2100mm | ||
Cabin size | (W)1800mm*(D)2000mm*(H)2500mm |
It becomes your most competent assistant because of its exceptionally long service life, effective and energy-saving operation and loading, steady and reliable performance. In addition, it is finest goods transport tool.
When the elevator is in stand-by mode, it automatically cuts off the lighting and ventilator fan in the elevator.

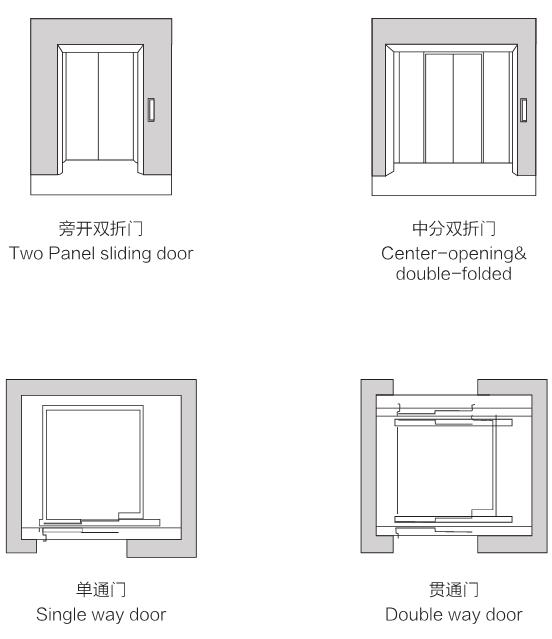

In order to satisfy different entry/exit requirements from vast users, Asia Fuji Changlin freight elevator offers four door opening modes of side opening double-fold door, center opening double-folded door, one-way door opening, opposite door opening. It can flexibly match with the factory, warehouse, department store, shopping center, housing property management center etc.
